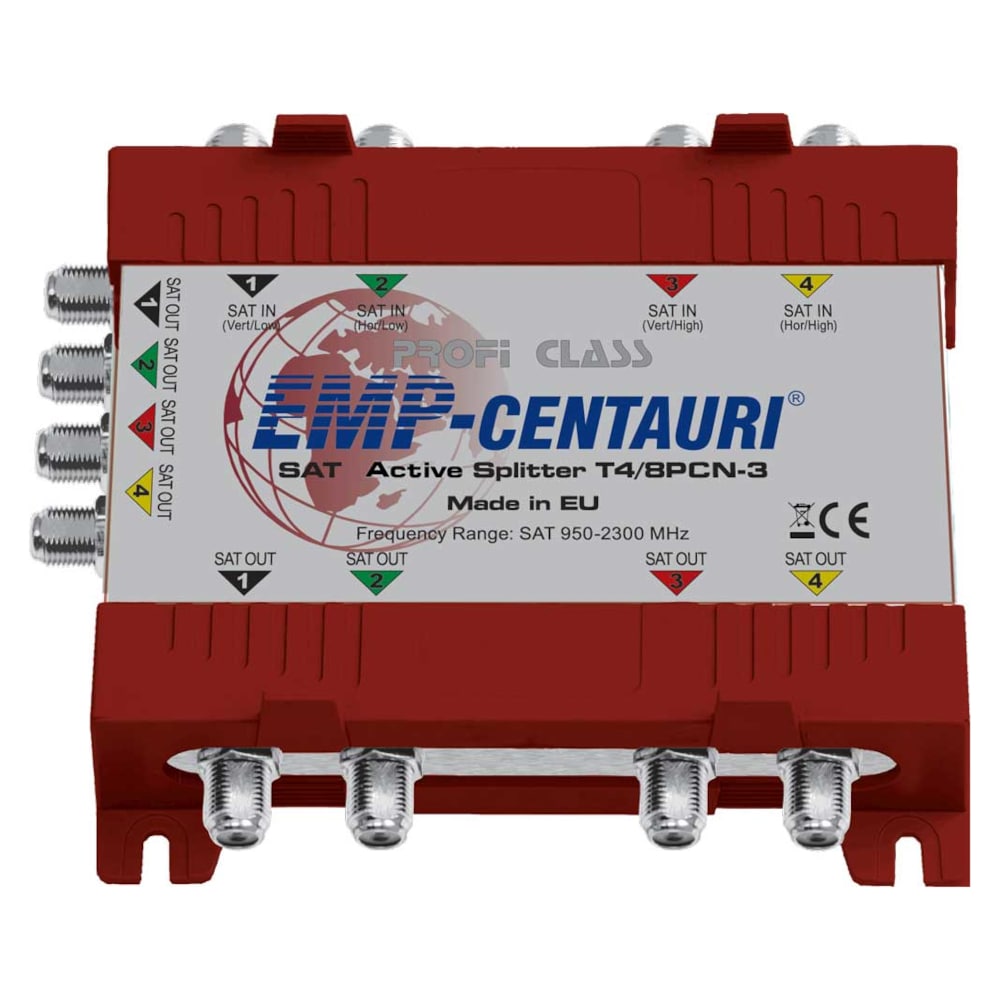

Splitter T4/8PCN-3

Name: Splitter T4/8PCN-3
SKU: 20585
Availability: InStock

35,1 €

4in/8out active splitter for distribution satellite signals from 1 satellite position (4 polarities) to two multiswitches.
DC is passed from straight satellite outputs to the respective inputs.
Recommended as an extension module carrying signals from the next LNB.

Categories: All products, Splitters, Taps, Wiring for television

Brief specification:

Parameter	Condition	Value
Frequency range		950-2300 MHz
Insertion loss		0 dB avg
Isolation	Between splitters	35 dB min
Isolation	Between outputs of the splitter	13 dB min
Maximum input level*		95 dBµV avg
Maximum output level*		95 dBµV avg
Power consumption	Total	40 mA
Dimensions (w,d,h)		12.7 x 10.4 x 4.1 cm
Temperature range		-30 ~ 70 °C
