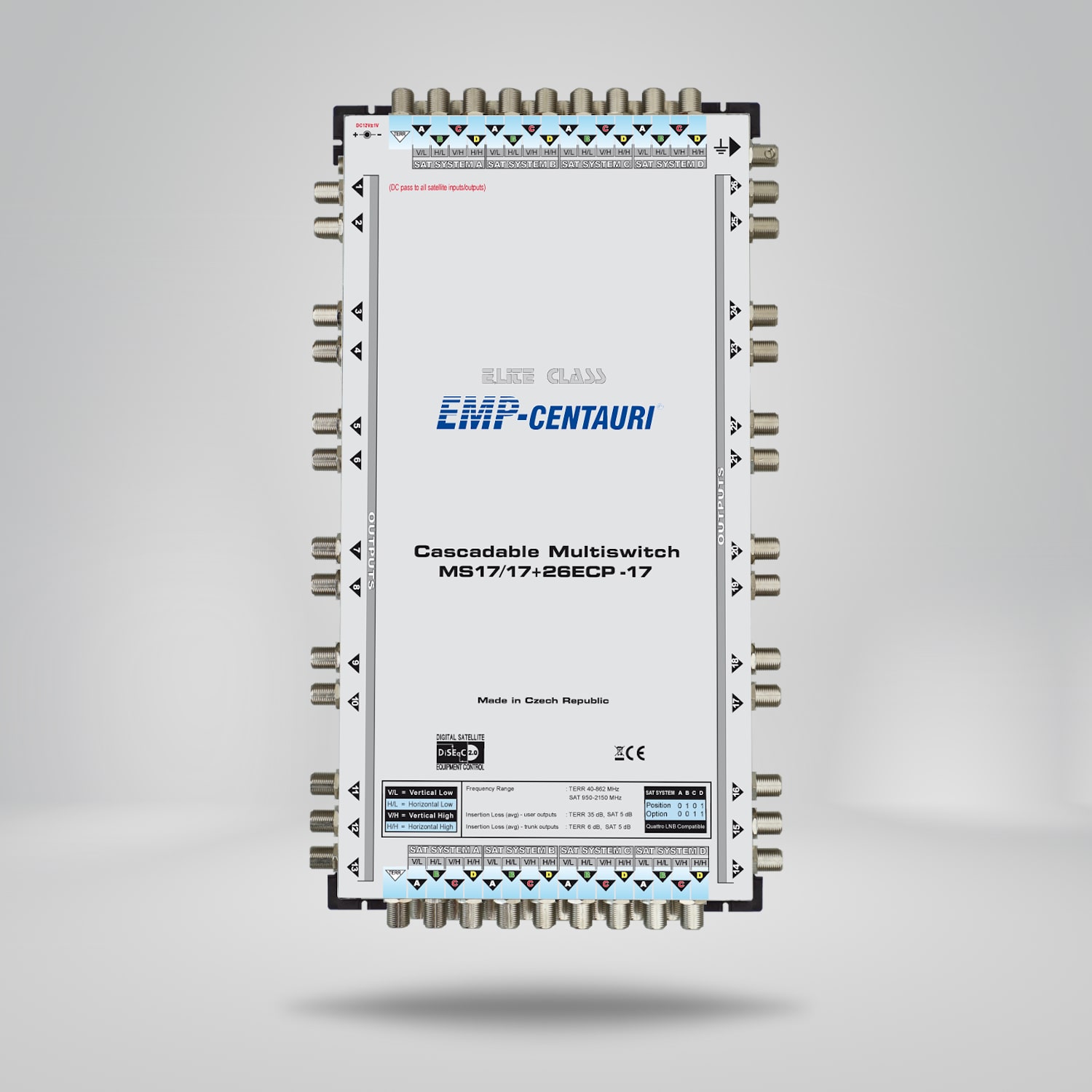

Cascadable multiswitch MS17/17+26ECP-17

Name: Cascadable multiswitch MS17/17+26ECP-17
SKU: 1712
Availability: InStock

289,2 €

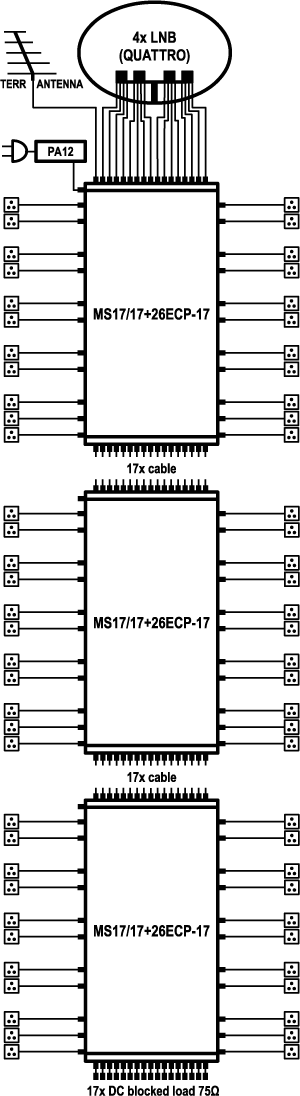

17in/17out+26 compact cascadable multiswitch for distribution terrestrial and satellite signals from 4 satellite positions (16 polarities) to 26 users.
The multiswitch is DC supplied from connected satellite receivers, DC2.1 socket for external power is connected to all satellite trunk lines.
DC pass is provided through the TERR line.

Categories: 4 satellites, All products, Cascadable multiswitches, Wiring for television

Brief specification:

Parameter	Condition	Value
Frequency range	Sat. trunks	950-2150 MHz
	Terr. trunk	40-862 MHz
	User outputs	40-2150 MHz
Control		13/18 V + 0/22 kHz + DiSEqC
Insertion loss – user outputs	Sat.	5 dB avg
Insertion loss – user outputs	Terr	35 dB avg
Insertion loss – trunk outputs	Sat.	5 dB avg
Insertion loss – trunk outputs	Terr	6 dB avg
Sat. inputs isolation	At user outputs	20 dB min
Sat. inputs isolation	At trunk outputs	25 dB min
Maximum input level*	Sat./Terr.	105/105 dBµV
Maximum user output level*	Sat./Terr	100/70 dBµV
Current consumption	Per user output	100 mA (18 V)
Dimensions (w,d,h)		18.6 x 33.2 x 5.1 cm
Temperature range		-25 ~ +60 °C
Weight		1.050 kg
